DISRUPTIVE TECHNOLOGY INNOVATIONS
Parameter | DK_BP1433_PB | DK_BP1467_PB | |
Battery | Battery Type | Lithium ion battery | |
Battery Power | 500Wh | 1,000Wh | |
Voltage | 14.8V | 14.8V | |
Capacity | 33.8Ah | 67.5Ah | |
Life Cycle | ≥1,000 | ||
BMS(Protection) | Over/Under voltage, High/Low temperature, Over current, Short circuit | ||
| Output Voltage | 100-240V(Depending on the factory settings in different countries and regions) | |
Output Frequency | 50-60HZ(Depending on the factory settings) | ||
Output power | AC500W about 30 Minutes | AC1,000W about 5 Minutes | |
AC300W about 85 Minutes | AC500W about 100 Minutes | ||
AC100W about 270 Minutes | AC100W about 540 Minutes | ||
Waveform | Pure sine wave | ||
Efficiency | 70% Load: >90% | ||
DC output | DC 5.5 port | DC12V5A | |
Cigarette lighter port | DC12V12A | ||
Efficiency | 70% Load: >93% | ||
USB output | USB1: 5V2.4A, USB2: 5V2.4A, USB3: QC3.0, 5-12V, 18W(MAX) | ||
USB-C output | PD 3.0 | 5 ~ 20V, 60W(MAX) | |
LED lighting | Low Bright/High Bright:5W(MAX)/ 10W(MAX) | ||
Charge | Adapter | 19V5A about 6h | 19V5A about 12h |
Car | 13V8A about 6h | 13V8A about 12h | |
PV | 24V5A about 7h | 24V5A about 13h | |
Power consumption | Quiescent current | <100uA | |
Product weight | Net weight/Gross weight | 5.9KG/7.6kg | 9.9KG/12kg |
Product volume | Size/Packing | 200x176x146 / 340x295x250 mm | 200x294x146 / 450x355x300 mm |

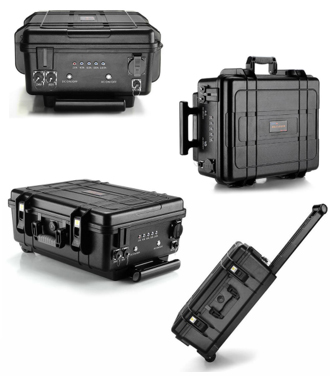

Parameter | DK_BP4840_PB | DK_BP4860_PB |
Battery Type | 48V40Ah Lithium battery | 48V60Ah Lithium battery |
Continuous output Power | 2,000W | 3,000W |
Peak output power | 4,000W | 6,000W |
Output voltage | AC pure sine wave 220V/50HZ or 110V | |
DC output | DC48V(DC42V~DC58.8V), DC24V | |
Battery capacity | 51.8V40Ah(2,000Wh) | 51.8V60Ah(3,000Wh) |
Charging time | About 5 hours | About 5 hours |
Charging AC voltage | AC 100 ~ 260V | |
Charging DC voltage | 58.8V | |
Protection | Over-voltage, Over/Under temperature, Overload, AC short circuit protection | |
Working environment | -20℃~60℃ | |
Dissipation | Air fan for forced cooling | |
Dimension | 515x434.5x199 mm | 560x450x200 mm |
Shelf material | ABS | |
Weight | 24kg | 29kg |
