DISRUPTIVE TECHNOLOGY INNOVATIONS

Industrial Container Battery

Solar and wind energy storage system

  • Complementary multiple energies and balanced power supply
  • Improving the stability and economic efficiency of on-grid power generation
  • Improving the grid regulation

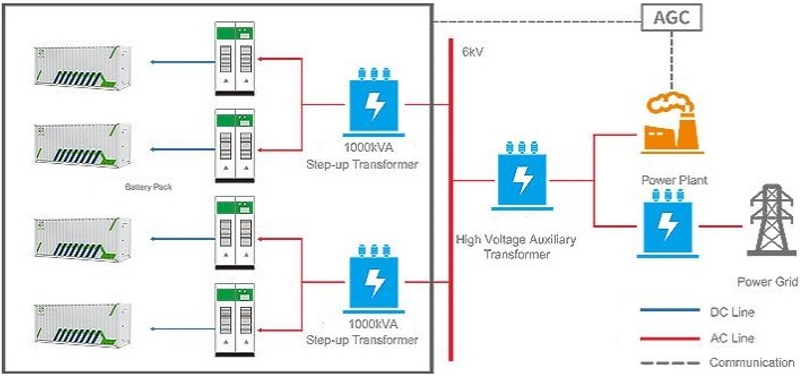

Frequency modulation of thermal power plant

  • Effectively improve the frequency and amplitude stability of power grid
  • Increase the revenue
  • High rate charging and discharging
  • Reduce grid impact and improve grid stability
  • Quick dynamic response of energy storage system
  • Improve quality of electric energy, and assisting new energy grid connection

Items

1.22MWH

2.50MWH

10MWH

Battery Type

Lifepo4

Rated Power

1.22MWH

2.5MWH

10MWH

DC Voltage Range

450V ~ 850 VDC

Balance Mode

Passive/Active, Optional

Energy Management and Monitoring

Yes

Voltage Connecting to Grid

380/400/415/480/600V, 10KV/35KV, optional

Number of Cycle

>6000,> 8000, >1000

Working Temperature

Discharge: -20-55℃

Charge: 0-50℃

IP Grade

IP 54

Overall Dimension

20 fit

40 fit

40 fit x 2
